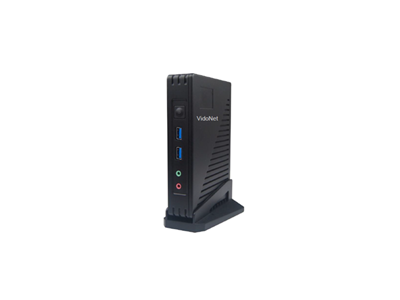

VTN-A300-TS-E | SecurePlus

Device Access

Supports VidoNet private protocol, ONVIF protocol, standard RTSP, SDK
Supports adding devices by manually entering IP address, domain name or IP range or by auto search

Resource Management

Setting the network of the devices before quick adding them
Supports channel (or camera) group management and device area management
Supports centralized management of decoding devices, encoding devices and platform services

Device Configuration

Supports the basic configuration and user management of the devices
Supports the date, time and time zone, network, email and DDNS configuration of the devices
Supports getting the information of the device's HDDs
Supports multi-OSD setup of one channel
Supports the camera's ROI, video mask and motion detection settings
Supports intelligent analytics
Supports the camera's resolution, frame rate, VBR/CBR, image quality and bitrate settings
Supports the camera's brightness, contrast, saturation, hue, AZ settings, etc.
The parameters of multiply devices can be set at one time
Supports configuring record plan for storage devices

Temperature Measuremen

Temperature screening real-time view and full screen display
Recent seven-day statistics and statistical display
Real-time statistical information view: Suspected Fever Counts/Total Pass-by (Today) Counts/ Total Fever Counts/ Total Pass-Through Counts/ Mask Off (Today) Counts/ Mask Off (Total) Counts
Temperature exception pop-up window, information editable (including whether to go to the affected area, name, phone number, ID number, address, etc.)
The record can be searched according to time range, temperature range, whether to have a fever, whether to go to the affected area, processing status and key words, and it also can be exported to an Excel
Historical statistics: a maximum of 40-day data statistics; curve chart, bar graph and Excel can be exported and the data of each time period can be displayed.
Temperature measurement range configurable
Supports a lot of alarm linkages based on suspected fever people detection

Live View

Supports multi-screen display mode:
Supports 1/4/6/8/9/10/16/117/21/25/33/36/49/64/84/100 standard screen display mode
Supports 2/4/6/7/9/12/16/24/36/48 widescreen display mode
Supports customized screen display mode
Supports corridor mode
Supports adding fisheye and panoramic cameras
Supports channel group auto-switch
Supports stream self-adaption and one-key stream switch
Supports steam copy
Supports multi-monitor display
Supports instant playback
Supports decoding with hardware
Supports device’s smart area and result displa
