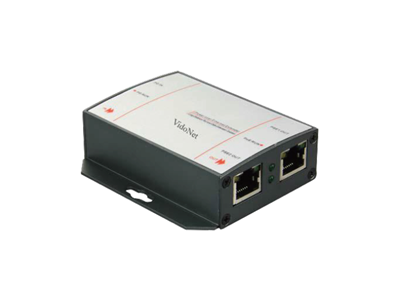

VT-2PE | SecurePlus

1x RJ45 PoE input port; 2x RJ45 PoE output ports
10/100M PoE extender, extends the data transmission from 100m to 200m
Supply power to IP network cameras through Cat5e cables (PoE)
Compatible with IEEE 802.3af PSE devices
Support 10/100M data transmission through RJ45 port
Auto-negotiation and auto-MDIX fast Ethernet RJ45 port
Both mid-span ( 4/5+, 7/8- ) and end-span ( 1/2+, 3/6- )
IEEE802.3af; IEEE 802.3i; IEEE 802.3u; IEEE 802.3x Flow Control; IEEE 802.3af DTE Power via MDI
100Base-TX : Cat5 UTP(≤100 meters)
Store-And-Forward architecture
2x RJ45 PoE ports; maximum 15.4W for single PoE port
Front-end receiving and Back-end supply power
